Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min

    Buy cheap Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min from wholesalers

    Buy cheap Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min from wholesalers
    • Buy cheap Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min from wholesalers
    • Buy cheap Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min from wholesalers

    Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min

    Ask Lasest Price
    Brand Name : EAST
    Certification : ISO9001
    Price : $15,800.00/set
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 50days
    Model Number : 3L
    • Product Details
    • Company Profile

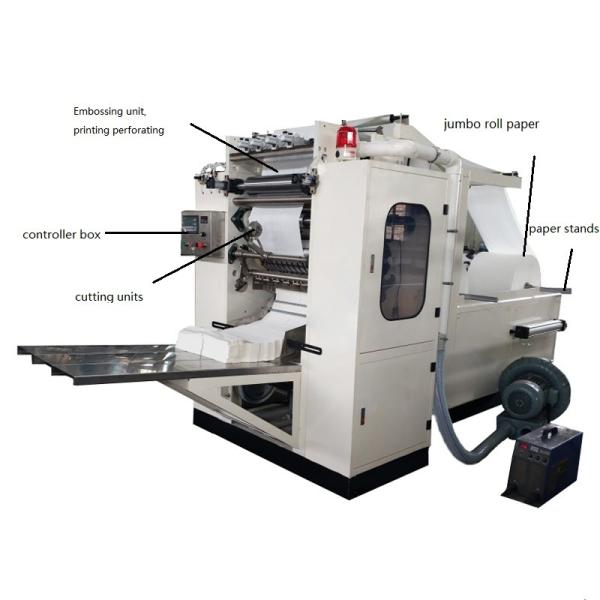

    Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min

    Machine Features


    1.Automatic counting points a whole row output.

    2.Helical blade shear,vacuum adsorption folding.

    3.Stepless speed regulation unwind and can adapt to rewind high -low tension paper material .

    4.Adopt PLC computer programing control ,pneumatic paper and easy to operate.

    5.Frequency conversion control ,saves enery.

    6.The product width is adjustable ,to meet different market requirement.

    7.Supporting paper rolling pattern device ,pattern obvious,flexible to market demand,(pattern by guests choose)

    8.It can make "V" type single layer towel and two layers glue lamination.(optional)


    Machine Technical Parameter


    Finished product size220L*220mm (other size are available)
    Raw material size690mm
    speed0-100m/min Depending on the machine modle
    Programmable controllerPlc computer
    Folding typeVacuum suction "Z" fold
    Transmission unitTiming belt
    Counterlnk marked
    Embossing unitSteel to steel
    Slitting unitPneumatic dot slitting
    Total power15kw
    Pneumatic system3hp air compressor .mini air pressure 5 kg/cm
    DimensionDepends on Machine Modle
    WeightDepend on the size and configure

    Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min

    Small Investment Tissue Paper Folding Machine 380V 50Hz 1000-1500pcs /Min


    FAQ


    Q: Can you provide the installation videos?

    A: Yes, we will provide.


    Q: What's the production time?

    A: Generally it is 40-60 working days, it depends on your customized requirements.


    Q: How long is your warranty?

    A: One year of the machine, wearing parts not included.


    Q: Can your company do customized machine?

    A: Yes we can. We have 3 experienced engineers to support customized designs.


    Q: How about your after-sales services?

    A: We offer online instructions or onsite if needed.
