    2200mm Toilet Tissue Making Machine With Embossing And Gluing Paper Slitter Rewinder

    Ask Lasest Price
    Brand Name : EAST
    Certification : CE ISO9001
    Price : $39,000.00/set
    Supply Ability : 20 sets per month
    Delivery Time : 35-40days
    Model Number : 2200mm
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    2200mm Toilet Tissue Making Machine With Embossing And Gluing Paper Slitter Rewinder

    2200mm Toilet Tissue Making Machine With Embossing And Gluing

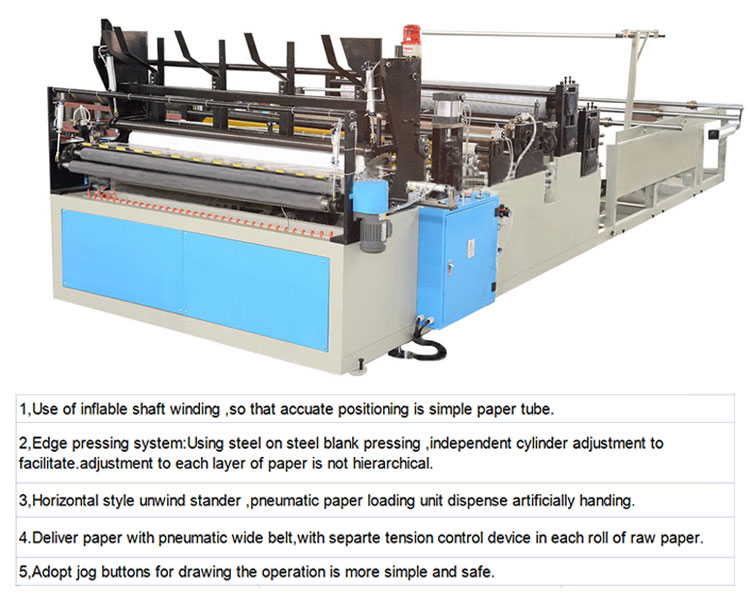

    Machine Advantage


    1. Automatic core feeding system,automatic pushing the log after rewinding,then rewinding the new log again.

    2. Automatic edge-trimming,glue spraying and sealing synchronously in one time

    3. Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric fault shows on touch screen.

    4. Embossed system,lamination system and paper core conveying system are optional.

    5. Back-stand adopts wallboard type structure (thickness-30mm),make it look nicely,stronger and easy to clean the waist paper.

    6. Adopts 4 pieces high Precision spiral knives,low noise,clear perforation,adopt gearbox to have bigger range.


    Machine Technical Parameter



    Machine ModelSN-2000 Full automatic toilet paper machine
    Raw Material Width2000mm
    Finished Roll Diameterφ90~φ280mm
    Finished Roll Core Diameterφ32~φ50mm
    Raw Material Diameter1100mm≤(Other size to be specified)
    Raw Material Core Diameterφ76mm(Other size to be specified)
    Perforation pitch4 Pieces of Anvil blades (115mm)Other size to be specified
    Machine Speed0~230m/min
    Unwinding Unit2 ply,(Other Size to be Specified)
    Air-system3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
    Power17KW
    Dimensions8800*3500*2000(L*W*H)
    Machine weight5.0 Ton
    Basis weight15~22 g/㎡
    Voltage380V 50HZ

    2200mm Toilet Tissue Making Machine With Embossing And Gluing Paper Slitter Rewinder


    2200mm Toilet Tissue Making Machine With Embossing And Gluing Paper Slitter Rewinder

    2200mm Toilet Tissue Making Machine With Embossing And Gluing Paper Slitter Rewinder

    FAQ

    Q: Can you provide the installation videos?

    A: Yes, we will provide.


    Q: What's the production time?

    A: Generally it is 40-60 working days, it depends on your customized requirements.


    Q: How long is your warranty?

    A: One year of the machine, wearing parts not included.


    Q: Can your company do customized machine?

    A: Yes we can. We have 3 experienced engineers to support customized designs.


    Q: How about your after-sales services?

    A: We offer online instructions or onsite if needed.
