Brand Name : | EAST |
Certification : | ISO9001 |
Price : | $29,000.00/Pieces 3-3 Pieces |
Payment Terms : | L/C, T/T |
Supply Ability : | 20 sets per month |
Delivery Time : | 35-40days |
Model Number : | 1950 |

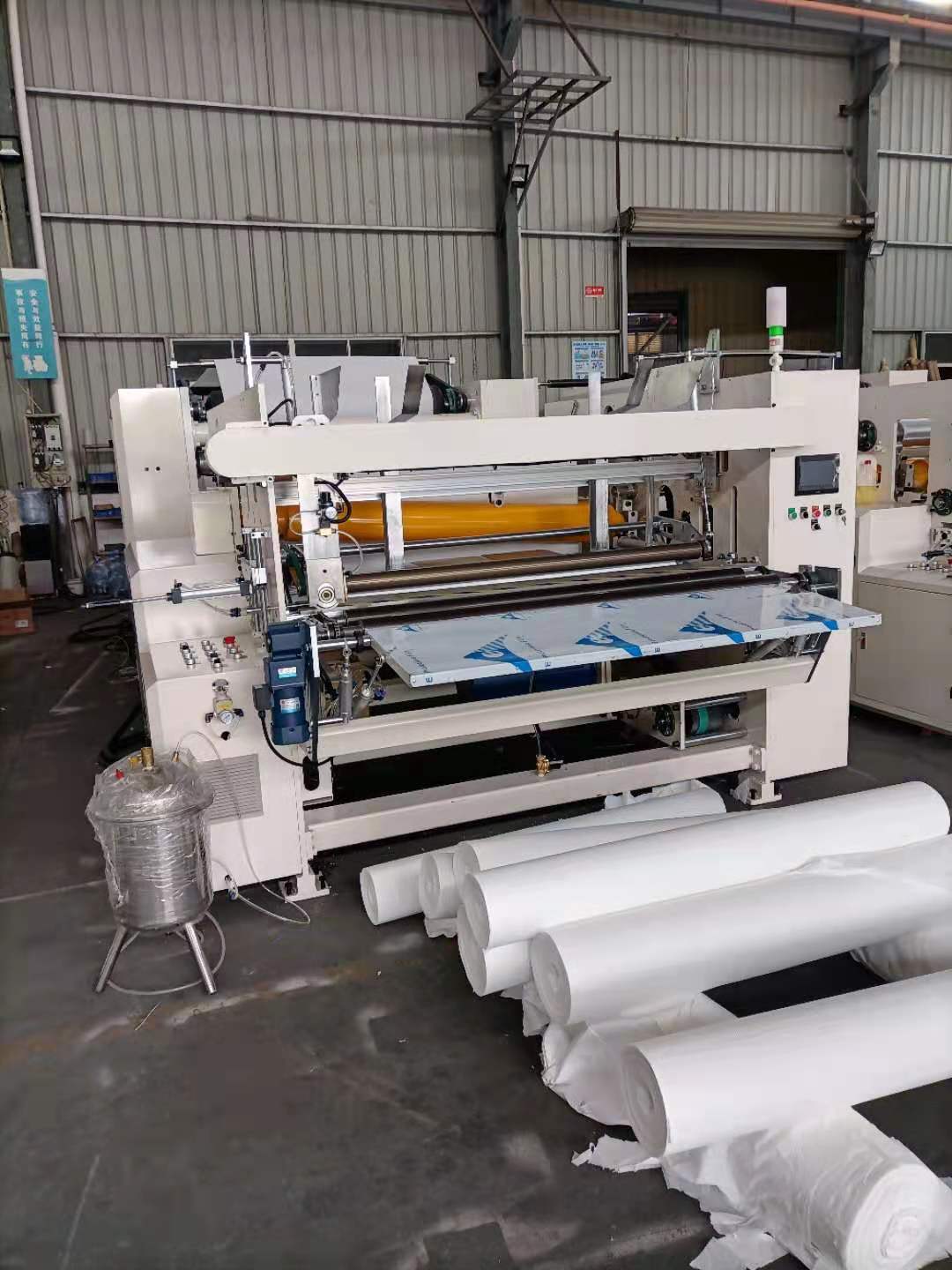

Fully Automatics Toilet Paper Roller and Kitchen Towel Paper Production Line
Machine Features
>1. >Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric fault shows on touch screen.
>2. >Automatic core feeding system,automatic pushing the log after rewinding,then rewinding the new log again
>3. >Two wall type back stands,pneumatic lifting system,with wide driving flat belts,each jumbo roll can be adjusted independently.
>4. >Adopt jogging switches for wearing the paper,easy and safe to operate.
>5. >All devices will be driven by separate motors with encodes,adopt PLC and servo controlled the slave motors will follow the main motors speed running.
Machine Technical Parameter
Control Unit | Electrical control,Scheider Control buttons,Taiwan Proximity switch |
Maximum material width | 1950mm |
Maximum material diameter | 1200mm |
Maximum rewinding diameter | 300mm |
Vacuum control | 1 set roots vacuum pump of 22KW(Taiwan) |
Pneumatic system | Air pressure:> 4kg/cm2 (provided by buyer) |
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: Generally it is 40-60 working days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
![]() |
